Numerics Library — Status Report¶
2026-08-30 17:28 UTC · AppleClang 17.0.0.17000013 · Release
Auto-generated by make report. Each section compares our implementation against the
industry-standard LAPACK/BLAS reference. Sections without data show [not available].
Table of Contents¶
- Build Environment
- Test Summary
- Core — vec and mat
- Benchmarks — mat Multiply
- Benchmarks — mat-vec Multiply
- Benchmarks — Dot Product
- Benchmarks — Axpy
- Factorizations
- LU Factorization
- QR Factorization
- Thomas tridiagonal Solver
- Iterative Solvers
- Conjugate Gradient
- Convergence Dynamics
- Resolvent & mat Exponential
- Talbot Spectral Quadrature
- banded Matrices
- Eigensolvers
- Full Symmetric Eigensolver
- Lanczos (mat-Free)
- Singular Value Decomposition
- Full SVD
- Randomized Truncated SVD
- Dynamical Systems & Symplectic ODEs
- Hamiltonian Energy Conservation
- Analysis
- Spectral — FFT
Build Environment¶
System¶
| Property | Value |
|---|---|
| OS | macOS |
| CPU | 8 core Apple M1 Pro |
| RAM | 16384 MB (16.0 GB) |
| GPU | n/a |
Backends¶
| Backend | Status | Notes |
|---|---|---|
| BLAS / cblas | found | Backend::blas -- cblas_dgemm, cblas_ddot, cblas_dgemv |
| LAPACKE | found | Backend::lapack -- dgetrf, dgeqrf, dgesdd, dsyevd, dgtsv |
| OpenMP | found | Backend::omp -- parallel blocked loops |
| FFTW3 | found | fft_backend::fftw -- AVX2/NEON optimised DFT |
| CUDA | not found | Backend::gpu -- custom kernels / cuBLAS |
| MPI | found | distributed ops (experimental) |
Test Summary¶
All test suites. A failed suite must be investigated before using the library in production.
| Suite | Tests | Passed | Failed | Time |
|---|---|---|---|---|
| vec | 7 | 7 | 0 | 0.0 ms |
| RawKernel | 3 | 3 | 0 | 0.0 ms |
| mat | 7 | 7 | 0 | 0.0 ms |
| MatmulPolicy | 1 | 1 | 0 | 0.0 ms |
| MatvecPolicy | 1 | 1 | 0 | 0.0 ms |
| MatrixExpr | 3 | 3 | 0 | 0.0 ms |
| Resolvent | 2 | 2 | 0 | 0.0 ms |
| CG | 5 | 5 | 0 | 0.0 ms |
| MatrixProperties | 2 | 2 | 0 | 0.0 ms |
| SolveDispatch | 2 | 2 | 0 | 0.0 ms |
| Operators | 1 | 1 | 0 | 0.0 ms |
| PCG | 2 | 2 | 0 | 0.0 ms |
| MINRES | 1 | 1 | 0 | 3.0 ms |
| PDEOperators | 2 | 2 | 0 | 0.0 ms |
| Thomas | 3 | 3 | 0 | 0.0 ms |
| GaussSeidel | 3 | 3 | 0 | 2.0 ms |
| Jacobi | 3 | 3 | 0 | 0.0 ms |
| GMRES | 5 | 5 | 0 | 0.0 ms |
| spmat | 5 | 5 | 0 | 0.0 ms |
| Probability | 1 | 1 | 0 | 0.0 ms |
| Selection | 2 | 2 | 0 | 0.0 ms |
| Sequence | 1 | 1 | 0 | 0.0 ms |
| Json | 1 | 1 | 0 | 0.0 ms |
| Talbot | 2 | 2 | 0 | 0.0 ms |
| AutoResolvent | 1 | 1 | 0 | 0.0 ms |
| SparseResolvent | 1 | 1 | 0 | 1.0 ms |
| DenseResolvent | 1 | 1 | 0 | 0.0 ms |
| Hessenberg | 2 | 2 | 0 | 0.0 ms |
| KernelRaw | 1 | 1 | 0 | 0.0 ms |
| HessenbergResolvent | 1 | 1 | 0 | 1.0 ms |
| band_mat | 6 | 6 | 0 | 0.0 ms |
| BandedSolver | 11 | 11 | 0 | 0.0 ms |
| BandedMatvec | 2 | 2 | 0 | 0.0 ms |
| BandedNorm | 1 | 1 | 0 | 0.0 ms |
| KLU | 1 | 1 | 0 | 0.0 ms |
| Cholesky | 4 | 4 | 0 | 0.0 ms |
| AutoLinear | 2 | 2 | 0 | 0.0 ms |
| InversePrincipalBlock | 1 | 1 | 0 | 0.0 ms |
| UMFPACK | 1 | 1 | 0 | 0.0 ms |
| LU | 9 | 9 | 0 | 0.0 ms |
| QR | 7 | 7 | 0 | 0.0 ms |
| Roots | 9 | 9 | 0 | 0.0 ms |
| Quadrature | 11 | 11 | 0 | 2.0 ms |
| FFT | 13 | 13 | 0 | 2.0 ms |
| fft_plan | 4 | 4 | 0 | 1.0 ms |
| ODE_Euler | 1 | 1 | 0 | 0.0 ms |
| ODE_RK4 | 2 | 2 | 0 | 0.0 ms |
| ODE_RK45 | 2 | 2 | 0 | 0.0 ms |
| ODE_Stepper | 2 | 2 | 0 | 0.0 ms |
| ODE_Verlet | 4 | 4 | 0 | 1.0 ms |
| ODE_Yoshida4 | 3 | 3 | 0 | 0.0 ms |
| EigSym_Jacobi | 3 | 3 | 0 | 0.0 ms |
| EigSym_LAPACK | 3 | 3 | 0 | 1.0 ms |
| PowerIteration | 1 | 1 | 0 | 0.0 ms |
| Lanczos | 2 | 2 | 0 | 1.0 ms |
| SVD_Jacobi | 3 | 3 | 0 | 0.0 ms |
| SVD_LAPACK | 4 | 4 | 0 | 1.0 ms |
| SVD_Randomized | 2 | 2 | 0 | 0.0 ms |
| scalar_field_3d | 1 | 1 | 0 | 0.0 ms |
| vector_field_3d | 1 | 1 | 0 | 0.0 ms |
| field_solver | 2 | 2 | 0 | 0.0 ms |
| Solve | 3 | 3 | 0 | 0.0 ms |
| Sample | 1 | 1 | 0 | 0.0 ms |
| Umbrella | 1 | 1 | 0 | 0.0 ms |
| DebugCheck | 6 | 6 | 0 | 0.0 ms |
| disjoint_set | 4 | 4 | 0 | 0.0 ms |
| indexed_priority_queue | 4 | 4 | 0 | 0.0 ms |
| graph | 7 | 7 | 0 | 0.0 ms |
| degree_queue | 2 | 2 | 0 | 0.0 ms |
| multigraph | 1 | 1 | 0 | 0.0 ms |
| MathSpine | 14 | 14 | 0 | 0.0 ms |
| RandomMat | 3 | 3 | 0 | 0.0 ms |
Core — vec and mat¶
vec<real> and mat<real> dispatch to the backend selected via the Backend enum
(seq → blocked → simd → blas → omp → gpu). With BLAS available, default_backend
resolves to Backend::blas.
Tests¶
| Suite | Tests | Passed | Failed | Time |
|---|---|---|---|---|
| vec | 7 | 7 | 0 | 0.0 ms |
| mat | 7 | 7 | 0 | 0.0 ms |

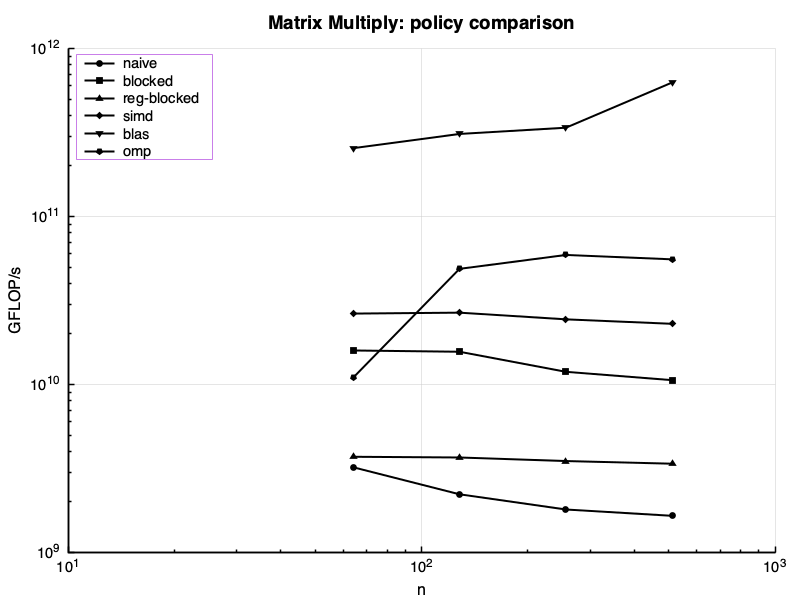

Benchmarks — mat Multiply¶
Throughput: 2 n³ / time (GFLOP/s, higher is better). Sizes n = 64…512.
| Variant | n=64 us | n=128 us | n=256 us | n=512 us |
|---|---|---|---|---|
| naive | 163.2 | 1889.9 | 18639.9 | 163206.8 |
| blocked (auto-vec) | 32.9 | 268.2 | 2824.0 | 25344.4 |
| reg-blocked | 141.3 | 1141.4 | 9593.2 | 79511.0 |
| Matmul |
33.0 | 268.5 | 2825.5 | 25343.6 |
| Matmul |
19.8 | 156.9 | 1375.5 | 11707.8 |
| Matmul |
2.1 | 13.5 | 99.4 | 443.7 |
| Matmul |
54.1 | 120.3 | 607.3 | 5064.6 |
| Matmul_Scalar | 140.1 | 1582.0 | 15636.4 | 150019.2 |
| Matmul_Scalar_Blocked | 113.9 | 941.1 | 7417.0 | 59757.8 |
Time in us. Lower is better.

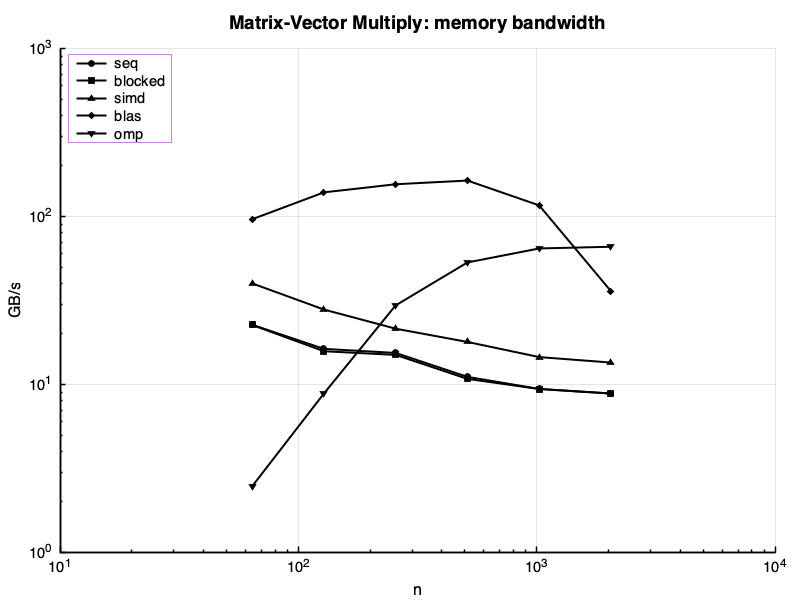

Benchmarks — mat-vec Multiply¶
Memory-bound. GB/s = (n² + 2n) × 8 / time.
| Variant | n=64 GB/s | n=128 GB/s | n=256 GB/s | n=512 GB/s | n=1024 GB/s | n=2048 GB/s |
|---|---|---|---|---|---|---|
| Matvec |
22.68 | 16.30 | 15.42 | 11.11 | 9.41 | 8.84 |
| Matvec |
22.62 | 15.79 | 15.01 | 10.80 | 9.41 | 8.84 |
| Matvec |
39.98 | 27.95 | 21.50 | 17.92 | 14.57 | 13.51 |
| Matvec |
96.38 | 139.25 | 155.66 | 163.72 | 116.49 | 35.98 |
| Matvec |
2.48 | 8.84 | 29.59 | 53.31 | 64.57 | 66.11 |
Throughput in GB/s. Higher is better.
Benchmarks — Dot Product¶
| Variant | n=1024 GB/s | n=4096 GB/s | n=16384 GB/s | n=65536 GB/s | n=262144 GB/s | n=1048576 GB/s |
|---|---|---|---|---|---|---|
| Dot |
18.95 | 17.21 | 16.85 | 16.85 | 16.72 | 16.83 |
| Dot |
113.99 | 103.39 | 81.71 | 81.93 | 81.13 | 63.79 |
| Dot |
0.61 | 2.35 | 8.75 | 29.01 | 68.52 | 106.44 |
Throughput in GB/s. Higher is better.

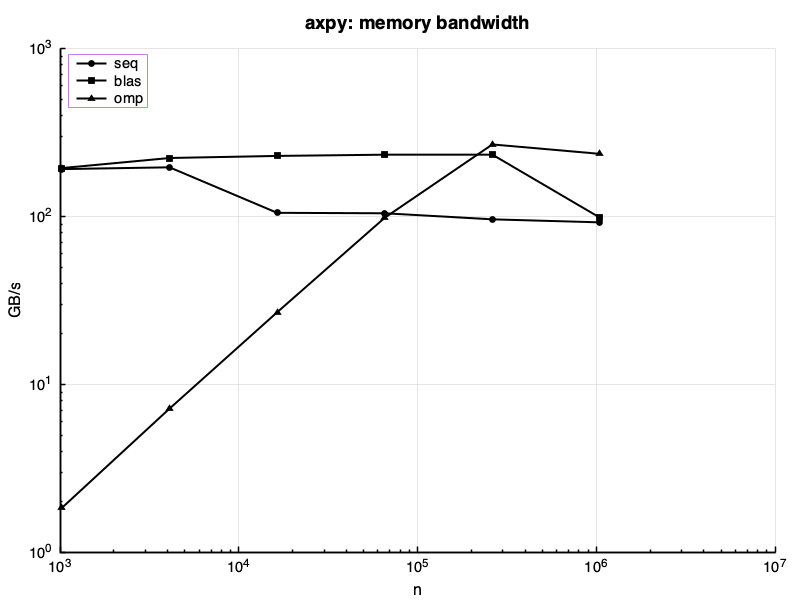

Benchmarks — Axpy (y += a·x)¶
| Variant | n=1024 GB/s | n=4096 GB/s | n=16384 GB/s | n=65536 GB/s | n=262144 GB/s | n=1048576 GB/s |
|---|---|---|---|---|---|---|
| Axpy |
191.62 | 196.28 | 105.20 | 104.55 | 96.22 | 92.30 |
| Axpy |
194.28 | 223.01 | 229.48 | 233.34 | 233.51 | 98.38 |
| Axpy |
1.84 | 7.19 | 26.91 | 98.32 | 268.52 | 235.98 |
Throughput in GB/s. Higher is better.
Factorizations¶
Three variants benchmarked side-by-side: our seq, our omp, LAPACK
(LAPACKE_dgetrf / LAPACKE_dgeqrf). With LAPACK available, lu() and qr()
default to Backend::lapack.
Tests¶
| Suite | Tests | Passed | Failed | Time |
|---|---|---|---|---|
| Thomas | 3 | 3 | 0 | 0.0 ms |
| LU | 9 | 9 | 0 | 0.0 ms |
| QR | 7 | 7 | 0 | 0.0 ms |
LU Factorization¶
LAPACK uses a blocked algorithm (BLAS-3 trailing-matrix updates via dgemm) that is
significantly faster than our unblocked Doolittle for large n.
| Variant | n=64 us | n=128 us | n=256 us | n=512 us | n=1024 us |
|---|---|---|---|---|---|
| LU |
18.3 | 147.4 | 1417.1 | 11656.3 | 84814.6 |
| LU |
18.2 | 149.0 | 1413.1 | 11590.8 | 85244.9 |
| LU |
47.5 | 351.7 | 2466.2 | 18172.5 | 134542.6 |
GFLOP/s: 2/3 n^3 / time. Higher is better.
QR Factorization¶
LAPACK (dgeqrf + dorgqr) uses blocked Householder with dgemm for panel updates.
| Variant | n=64 us | n=128 us | n=256 us | n=512 us |
|---|---|---|---|---|
| QR |
72.5 | 500.6 | 4889.9 | 38524.3 |
| QR |
71.8 | 519.6 | 4983.5 | 38218.1 |
| QR |
177.1 | 1760.0 | 14957.7 | 132007.0 |
GFLOP/s: 4/3 n^3 / time. Higher is better.

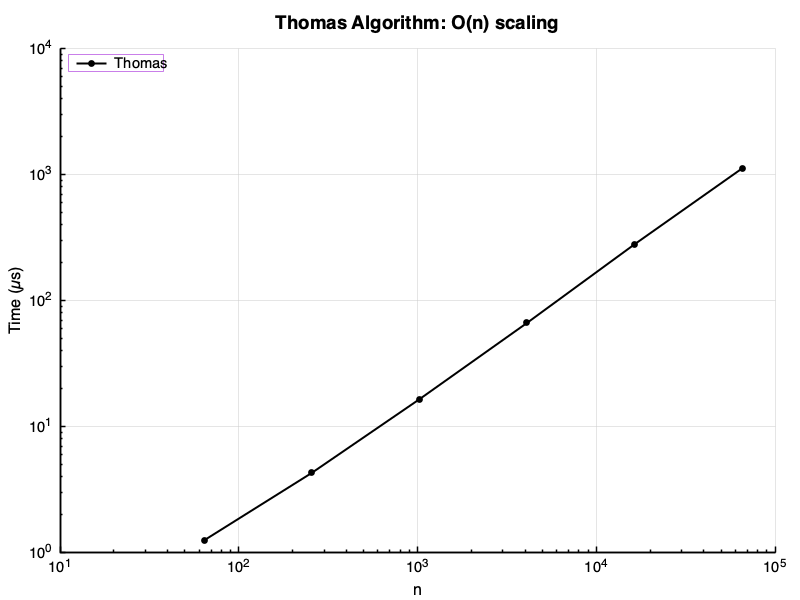

Thomas tridiagonal Solver¶
O(n) direct solver. LAPACKE_dgtsv uses the same algorithm with additional
pivoting for stability.
| Variant | n=64 us | n=256 us | n=1024 us | n=4096 us | n=16384 us | n=65536 us |
|---|---|---|---|---|---|---|
| Thomas | 1.3 | 4.3 | 16.5 | 66.4 | 279.8 | 1119.9 |
Time in us. Linear O(n) scaling expected.
Iterative Solvers¶
Tests¶
| Suite | Tests | Passed | Failed | Time |
|---|---|---|---|---|
| CG | 5 | 5 | 0 | 0.0 ms |
| GaussSeidel | 3 | 3 | 0 | 2.0 ms |
| Jacobi | 3 | 3 | 0 | 0.0 ms |

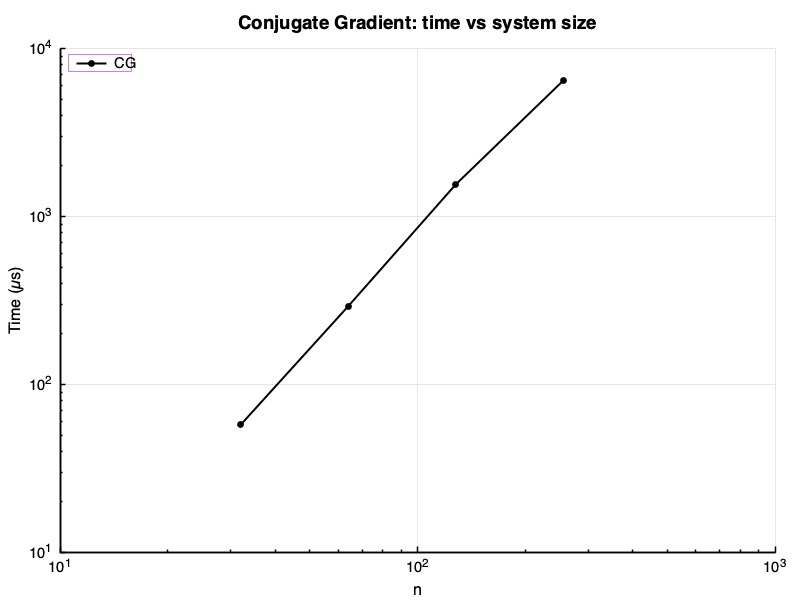

Conjugate Gradient¶
CG inner-product and axpy calls dispatch to best_backend (BLAS when available).
| Variant | n=32 us | n=64 us | n=128 us | n=256 us |
|---|---|---|---|---|
| CG | 57.6 | 292.6 | 1554.4 | 6460.9 |
Time in us. Lower is better.

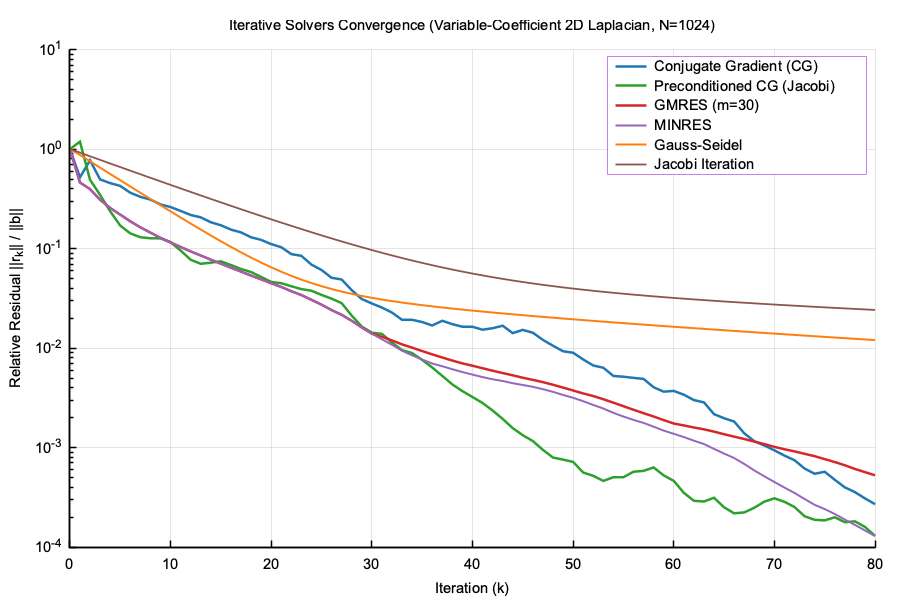

Convergence Dynamics¶
Relative residual reduction \(\frac{\|r_k\|}{\|b\|}\) across iterations on anisotropic 2D Poisson (\(N = 1024\) nodes):

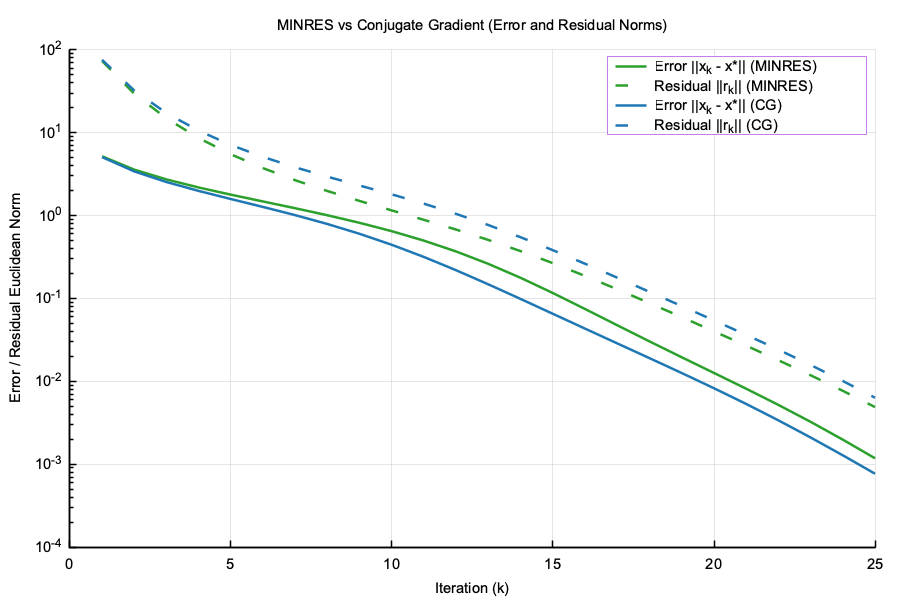

MINRES vs Conjugate Gradient (Error & Residual Comparison)¶
Comparison of monotonicity in residual 2-norm versus \(A\)-norm energy minimization between MINRES and CG:
Resolvent & mat Exponential¶

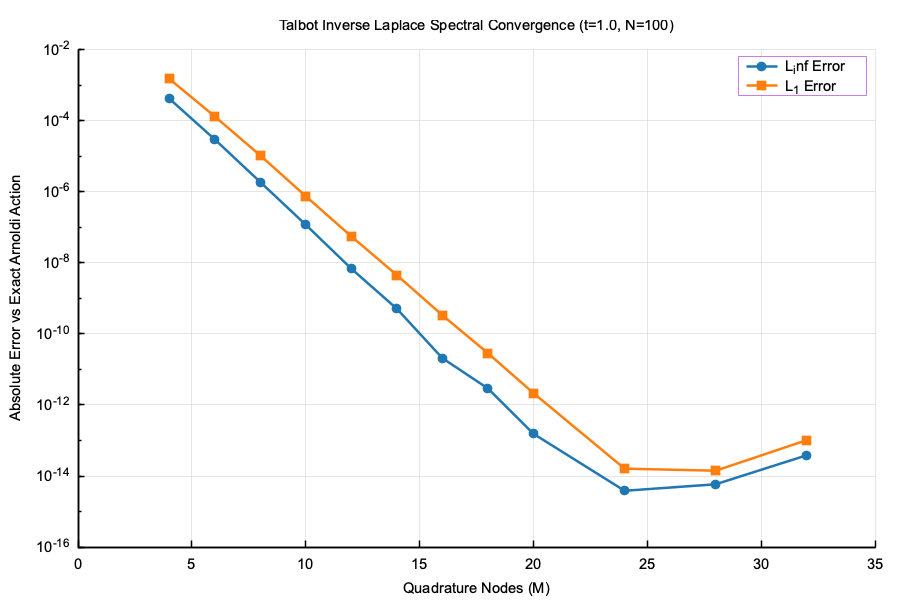

Talbot Spectral Quadrature¶
Evaluation of matrix exponential action \(e^{t Q} p_0\) via Weideman-Talbot shifted resolvent contour solves \((s_k I - Q)^{-1} p_0\) accelerated by Upper Hessenberg reduction (\(O(N^3 + k N^2)\)):
banded Matrices¶
Tests¶
No test data -- run make report to generate.
Benchmarks¶
| Variant | n=3 us | n=5 us | n=7 us | n=11 us | n=15 us | n=21 us | n=64 us | n=256 us | n=1024 us | n=4096 us | n=16384 us | n=65536 us | n=262144 us |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BandedSolve_Tridiagonal | -- | -- | -- | -- | -- | -- | 2.1 | 6.4 | 23.5 | 93.5 | 382.5 | 1585.7 | 6646.5 |
| BandedSolve_Pentadiagonal | -- | -- | -- | -- | -- | -- | 2.4 | 7.6 | 28.7 | 112.9 | 459.2 | 1928.8 | -- |
| BandedSolve_General_KL2_KU4 | -- | -- | -- | -- | -- | -- | 2.5 | 7.9 | 30.0 | 116.3 | 463.8 | 2074.2 | -- |
| BandedSolve_General_KL5_KU5 | -- | -- | -- | -- | -- | -- | 3.1 | 10.6 | 41.2 | 157.8 | 705.3 | -- | -- |
| BandedLU_Factorization | -- | -- | -- | -- | -- | -- | 1.4 | 3.4 | 12.2 | 46.9 | 197.4 | 814.3 | -- |
| BandedLU_Solve | -- | -- | -- | -- | -- | -- | 1.6 | 4.3 | 15.4 | 59.7 | 239.0 | 955.7 | -- |
| BandedSolve_MultiRHS | -- | -- | -- | -- | -- | -- | 15.7 | 60.8 | 239.7 | 939.8 | 3761.5 | -- | -- |
| BandedMatvec_Tridiagonal | -- | -- | -- | -- | -- | -- | 0.2 | 0.9 | 3.6 | 14.8 | 58.9 | 246.3 | 993.7 |
| BandedMatvec_Pentadiagonal | -- | -- | -- | -- | -- | -- | 0.4 | 1.4 | 5.7 | 22.8 | 90.7 | 367.5 | 1462.2 |
| BandedSolve_Bandwidth_Scaling | 95.6 | 114.6 | 124.9 | 170.8 | 232.7 | 363.9 | -- | -- | -- | -- | -- | -- | -- |
Time in us. Lower is better.
Eigensolvers¶
Three variants: our cyclic Jacobi (seq), our Jacobi (omp), LAPACK dsyevd
(divide-and-conquer, asymptotically fastest for dense matrices).
Lanczos is matrix-free and targets only k eigenvalues — it lives on a separate plot.
Tests¶
| Suite | Tests | Passed | Failed | Time |
|---|---|---|---|---|
| PowerIteration | 1 | 1 | 0 | 0.0 ms |
| Lanczos | 2 | 2 | 0 | 1.0 ms |

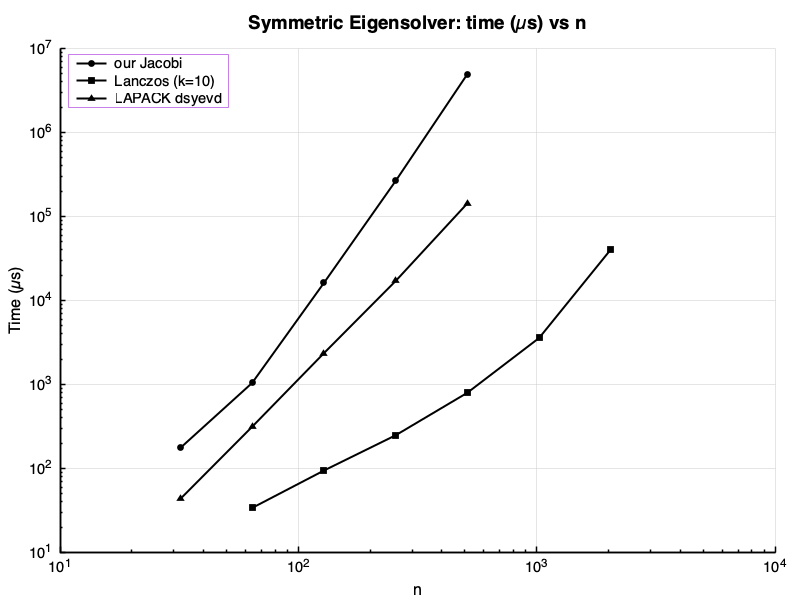

Full Symmetric Eigensolver¶
| Variant | n=32 us | n=64 us | n=128 us | n=256 us | n=512 us |
|---|---|---|---|---|---|
| EigSym |
176.3 | 1046.5 | 16204.0 | 265312.2 | 4955629.6 |
| EigSym |
43.6 | 314.8 | 2362.2 | 17092.3 | 143584.0 |
Time in us. Lower is better.
Lanczos (mat-Free)¶
k = 10 eigenvalues requested. Each step costs one matvec O(n²) plus reorthogonalisation.
| Variant | n=64 us | n=128 us | n=256 us | n=512 us | n=1024 us | n=2048 us |
|---|---|---|---|---|---|---|
| Lanczos | 34.0 | 94.7 | 249.2 | 799.7 | 3588.6 | 40677.0 |
Time in us (k=10 eigenvalues). Lower is better.

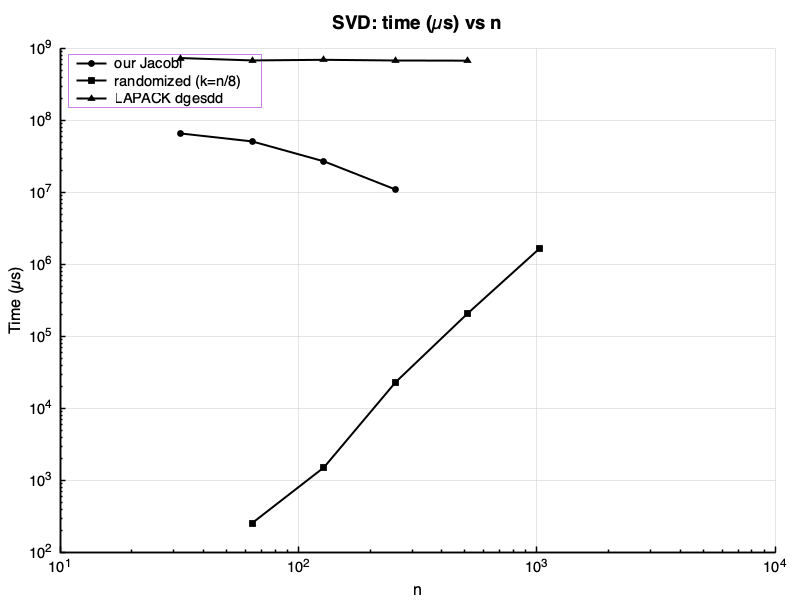

Singular Value Decomposition¶
Three variants: our one-sided Jacobi, randomized truncated SVD (top k = n/8),
LAPACK dgesdd (divide-and-conquer, fastest full SVD).
Tests¶
No test data -- run make report to generate.
Full SVD¶
No benchmark data -- run make report to generate.
Randomized Truncated SVD¶
| Variant | n=64 us | n=128 us | n=256 us | n=512 us | n=1024 us |
|---|---|---|---|---|---|
| SVD_Randomized | 257.0 | 1522.4 | 23289.4 | 207871.4 | 1652464.9 |
Time in us (k=n/8 singular values). Lower is better.
Dynamical Systems & Symplectic ODEs¶

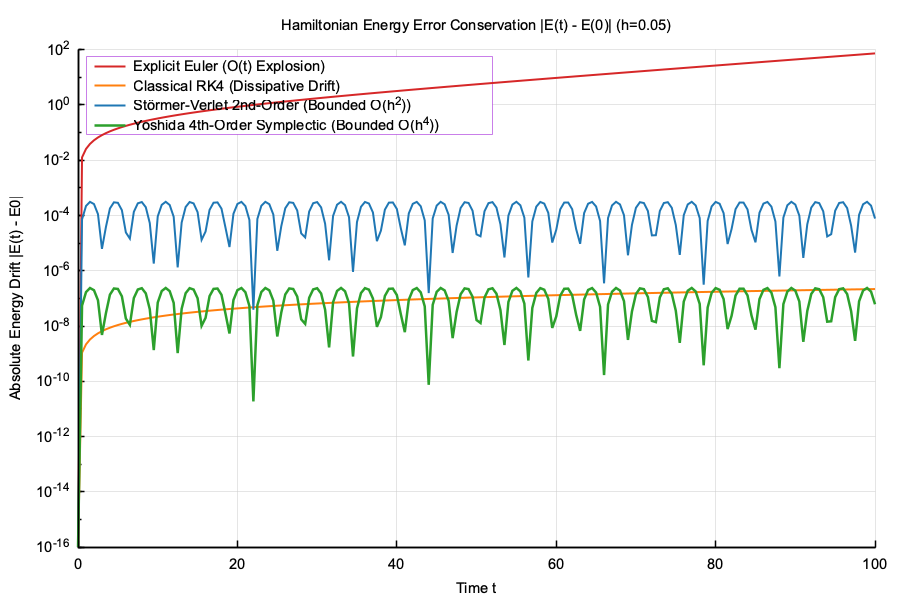

Hamiltonian Energy Conservation¶
Long-term energy error \(|E(t) - E(0)|\) over \(2 \times 10^3\) steps (\(h = 0.05\)):
Analysis¶
Root finding (bisection, Newton, secant) and numerical quadrature (Gauss-Legendre, adaptive Simpson).
Tests¶
| Suite | Tests | Passed | Failed | Time |
|---|---|---|---|---|
| Roots | 9 | 9 | 0 | 0.0 ms |
| Quadrature | 11 | 11 | 0 | 2.0 ms |

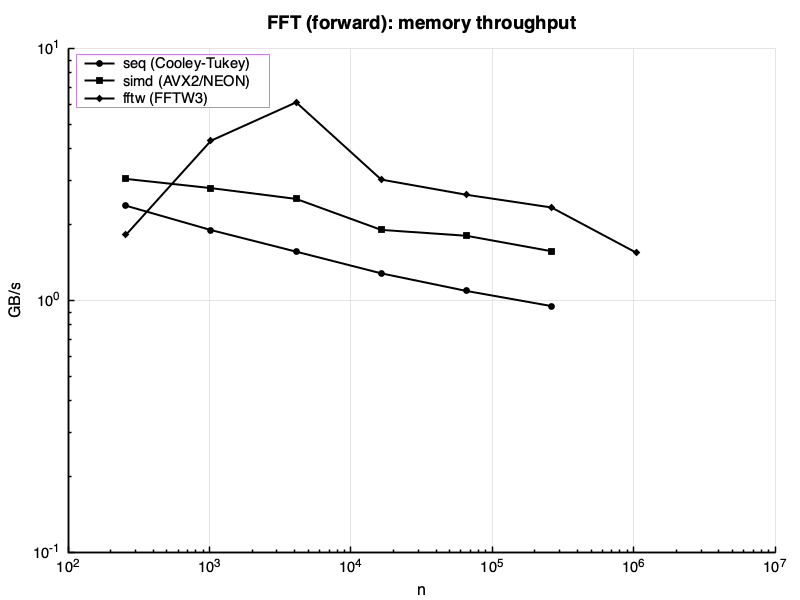

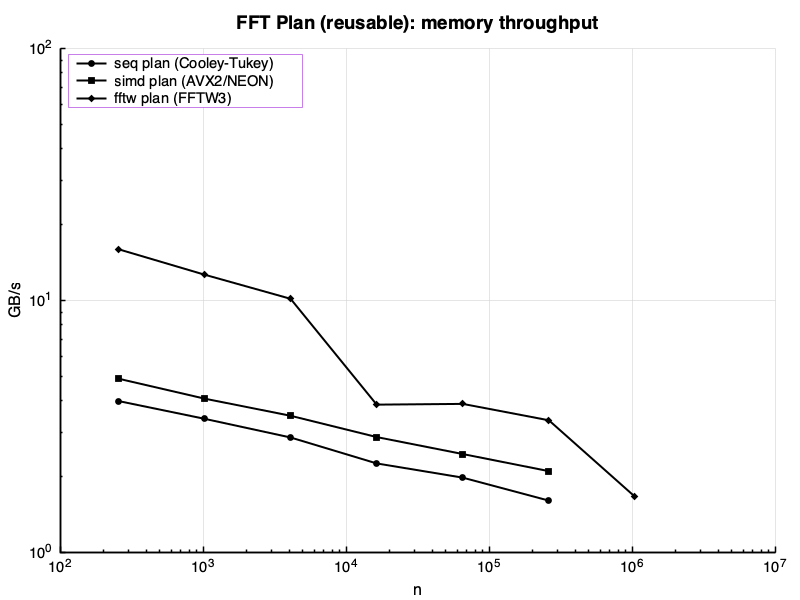

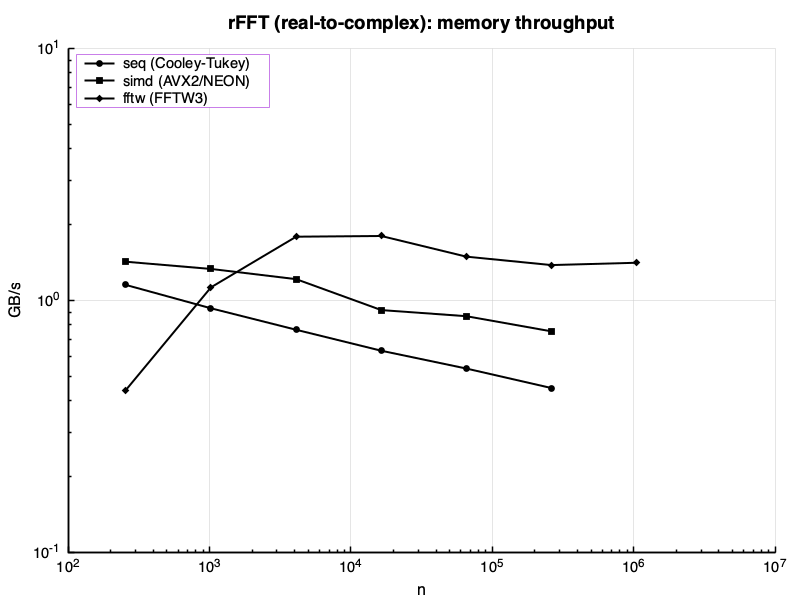

Spectral — FFT¶
Backends: seq (Cooley-Tukey), simd (AVX2/NEON), fftw (FFTW3).
Tests¶
| Suite | Tests | Passed | Failed | Time |
|---|---|---|---|---|
| FFT | 13 | 13 | 0 | 2.0 ms |
| fft_plan | 4 | 4 | 0 | 1.0 ms |
Benchmarks — Forward FFT¶
| Variant | n=256 GB/s | n=1024 GB/s | n=4096 GB/s | n=16384 GB/s | n=65536 GB/s | n=262144 GB/s | n=1048576 GB/s |
|---|---|---|---|---|---|---|---|
| seq (Cooley-Tukey) | 3.99 | 3.39 | 2.86 | 2.26 | 1.98 | 1.61 | -- |
| simd (AVX2/NEON) | 4.90 | 4.08 | 3.49 | 2.87 | 2.46 | 2.10 | -- |
| fftw (FFTW3) | 15.98 | 12.66 | 10.16 | 3.86 | 3.89 | 3.35 | 1.67 |
Throughput in GB/s. Higher is better.
Benchmarks — FFT Plan (amortised)¶
| Variant | n=256 GB/s | n=1024 GB/s | n=4096 GB/s | n=16384 GB/s | n=65536 GB/s | n=262144 GB/s | n=1048576 GB/s |
|---|---|---|---|---|---|---|---|
| seq (Cooley-Tukey) | 3.99 | 3.39 | 2.86 | 2.26 | 1.98 | 1.61 | -- |
| simd (AVX2/NEON) | 4.90 | 4.08 | 3.49 | 2.87 | 2.46 | 2.10 | -- |
| fftw (FFTW3) | 15.98 | 12.66 | 10.16 | 3.86 | 3.89 | 3.35 | 1.67 |
Throughput in GB/s. Plan creation excluded. Higher is better.
Benchmarks — Real-to-Complex FFT¶
| Variant | n=256 GB/s | n=1024 GB/s | n=4096 GB/s | n=16384 GB/s | n=65536 GB/s | n=262144 GB/s | n=1048576 GB/s |
|---|---|---|---|---|---|---|---|
| seq (Cooley-Tukey) | 1.15 | 0.93 | 0.77 | 0.63 | 0.54 | 0.45 | -- |
| simd (AVX2/NEON) | 1.43 | 1.33 | 1.22 | 0.92 | 0.87 | 0.75 | -- |
| fftw (FFTW3) | 0.44 | 1.13 | 1.79 | 1.80 | 1.49 | 1.38 | 1.41 |
Throughput in GB/s. Higher is better.
Generated by make report.
